Off-Grid Solar Power Plants
Scroll down and complete details and range of Off-Grid solar power plants

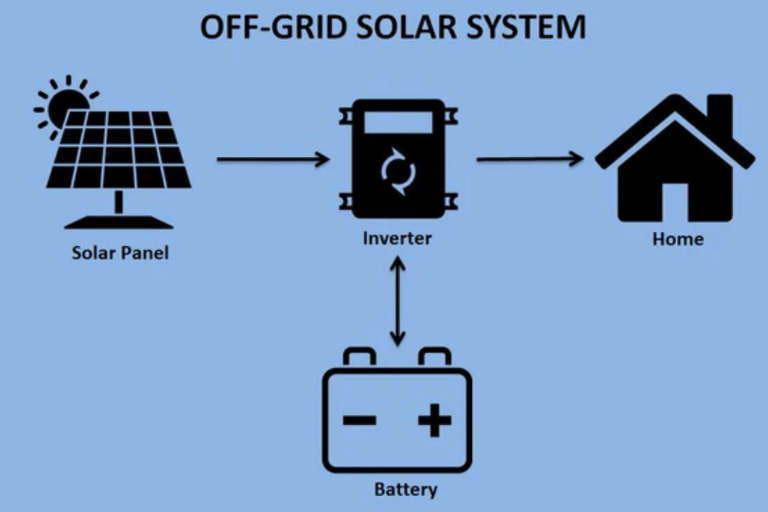

How to works an Off-Grid solar power plant?
An off-grid solar system, as the name suggests, operates independently of the utility grid. It's often used in remote areas where access to the grid is limited. Here's how it works:
Solar Panels Generate Electricity: Solar panels on your property generate electricity from sunlight, just like with on-grid systems.
Batteries Store Excess Electricity: Excess electricity generated during the day is stored in batteries for use during the night or when the panels can't produce power.
No Connection to the Grid: An off-grid system doesn't connect to the local utility grid. You rely solely on the solar panels and battery storage for your electricity needs.
Power back-up : To connected with battery we got 24*7 power back-up after cut off grid/electricity.
2.2 KW OFF-GRID SOLAR (WITH 2 BATTERY 24V) Complete Installation details and Price(Cost) -
2.2 KW OFF-GRID SOLAR - This system is design for where more power cut or no option of grid and electricity , 2.2kw off-grid solar power plant is enough for 2 or 4 fans, 5-10 LED bulbs, 1 HP water motor . At roof 2.2 kw solar takes 180 sqft area for installation of plant , 2.2 KW OFF-GRID SOLAR (WITH 2 BATTERY 24V) costs near 1.4 -1.5 lakhs .
Details of material for 2.2 KW OFF-GRID SOLAR (WITH 2 BATTERY 24V)
Solar panels 2200 watts- 4 NOS
Solar inverters 2.5kVA -1 NOS
Solar Batteries 150 ah -2 Nos
Solar MC4 connectors As need
Solar Dc wire As need
Solar structure/stand 2.2 kw
Solar earthing 2
Solar LA 1
Tie,tape,conduet pipe, albo, fastner, mc4 connectors etc.
3.5 KW OFF-GRID SOLAR (WITH 4 BATTERY 48V) Complete Installation details and Price(Cost) -
3.5 KW OFF-GRID SOLAR - This system is design for where more power cut or no option of grid and electricity , 3.5 kw off-grid solar power plant is enough for an ideal home like 4-5 fans, 10-15 LED bulbs, CCTV, Computer system, Washing machine , mixer/grinder machine ,1 HP water motor . At roof 3.5 kw solar takes 250 sqft area for installation of plant , 3.5 KW OFF-GRID SOLAR (WITH 4 BATTERY 48V) costs near 2.1-2.5 lakhs .
Details of material for 3.5 KW OFF-GRID SOLAR (WITH 4 BATTERY 48V)
Solar panels 3500 watts- 6 NOS
Solar inverters 3.5/3.7kVA -1 NOS
Solar Batteries 150 ah -4 Nos
Solar MC4 connectors As need
Solar Dc wire As need
Solar structure/stand 3.5 kw
Solar earthing 2
Solar LA 1
Tie, tape, conduet pipe, albo, fastner, connectors etc.
5 KW OFF-GRID SOLAR (WITH 4 BATTERY 48V) Complete Installation details and Price(Cost) -
5 KW OFF-GRID SOLAR - This system is design for where more power cut or no option of grid and electricity , 5 kw off-grid solar power plant is enough for an ideal home, Schools, offices, Petrol pumps or other places load like 1 AC 1 or 1.5 Ton (Day time), 4-5 fans, 10-15 LED bulbs, CCTV, Computer system, Washing machine , mixer/grinder machine ,1 HP water motor . At roof 5 kw solar takes 450 sqft area for installation of plant , 5 KW OFF-GRID SOLAR (WITH 4 BATTERY 48V) costs near 3.1-3.2 lakhs .
Details of material for 5 KW OFF-GRID SOLAR (WITH 4 BATTERY 48V)
Solar panels 5000 watts- 9 NOS
Solar inverters 5/5.2 kVA -1 NOS
Solar Batteries 150 ah -4 Nos
Solar MC4 connectors As need
Solar Dc wire As need
Solar structure/stand 5 kw
Solar earthing 2
Solar LA 1
Tie, tape, conduet pipe, albo, fastner, connectors etc.
10.5 KW OFF-GRID SOLAR (WITH 10 BATTERY 120V) Complete Installation details and Price(Cost) -
10.5 KW OFF-GRID SOLAR - This system is design for where more power cut or no option of grid and electricity , 10.5 kw off-grid solar power plant is enough for an ideal homes, Schools, offices, Petrol pumps, collages , institutes or other places load like 2 AC 1 or 1.5 Ton (Day time), 80-100 fans, 100-150 LED bulbs, CCTV, Computer system, 1 /2.5 HP water motor , Lab, other loads up to 6kw. At roof 10.5 kw solar takes 850 sqft area for installation of plant , 10.5 KW OFF-GRID SOLAR (WITH 10 BATTERY 120V) costs near 6-6.3 lakhs .
Details of material for 10.5 KW OFF-GRID SOLAR (WITH 10 BATTERY 120 V)
Solar panels 10500 watts- 18 NOS
Solar inverters 10 kVA -1 NOS
Solar Batteries 150 ah -10 Nos
Solar MC4 connectors As need
Solar Dc wire As need
Solar structure/stand 10 kw
Solar earthing 2
Solar LA 1
Tie, tape, conduet pipe, albo, fastner, connectors etc.
15 KW OFF-GRID SOLAR (WITH 20 BATTERY 240V) Complete Installation details and Price(Cost) -
15 KW OFF-GRID SOLAR - This system is design for where more power cut or no option of grid and electricity , 15 kw off-grid solar power plant is enough for an ideal homes, Schools, offices, Petrol pumps, collages , institutes or other places load like 3 AC 1 /1.5/2 Ton (Day time), 120-150 fans, 180-250 LED bulbs, CCTV, Computer system, 1 /2.5/3 HP water motor , Lab, other loads up to 8 kw. At roof 15 kw solar takes 1350 sqft area for installation of plant , 15 KW OFF-GRID SOLAR (WITH 20 BATTERY 240V) costs near 9.5-9.9lakhs .
Details of material for 15 KW OFF-GRID SOLAR (WITH 20 BATTERY 240 V)
Solar panels 15000 watts- 18 NOS
Solar inverters 15 kVA -1 NOS
Solar Batteries 150 ah -20 Nos
Solar MC4 connectors As need
Solar Dc wire As need
Solar structure/stand 15 kw
Solar earthing 2
Solar LA 1
Tie, tape, conduet pipe, albo, fastner, connectors etc.
